ขาย ATV CF MOTO CFORCE 520 4x4 เทคโนโลยี CANDA ของใหม่รับประกัน 1 ปี

สินค้าใหม่

210,000 บาท

  • รถ ATV UTU 4x4 และอะไหล่ เราเยอะที่สุดในประเทศไทย รับประกัน 1 ปี ทุกขนาด

    ท่านไดสนใจโทรสอบถาม หรือ แอดไอดีลาย  0926944040   รับบัตรทุกธนาคารครับ

    ผ่อนนานสูงสุด  3-6เดือน กับ บัตร กสิกรไทย  นานสูงสุด  10เดือน

    www.atvbkk.com   รายละเอียดรถ ดูในเว๊บไซต์นี้ได้ครับ

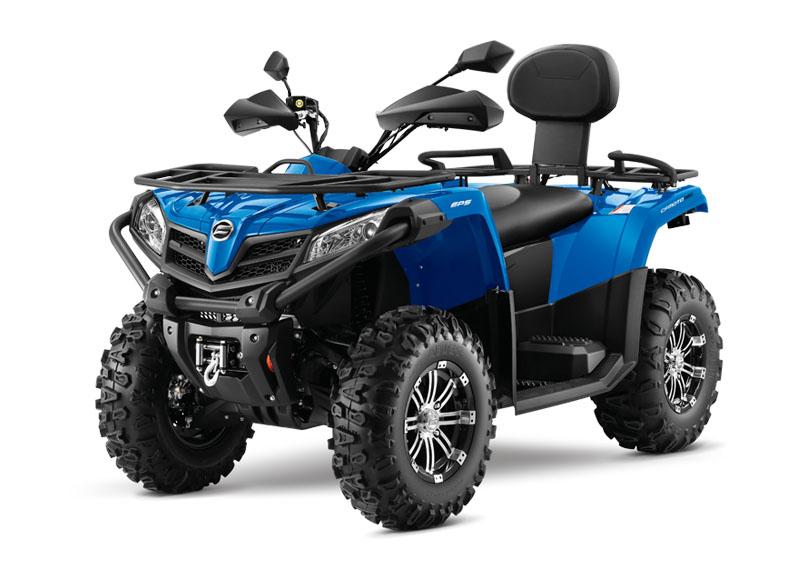

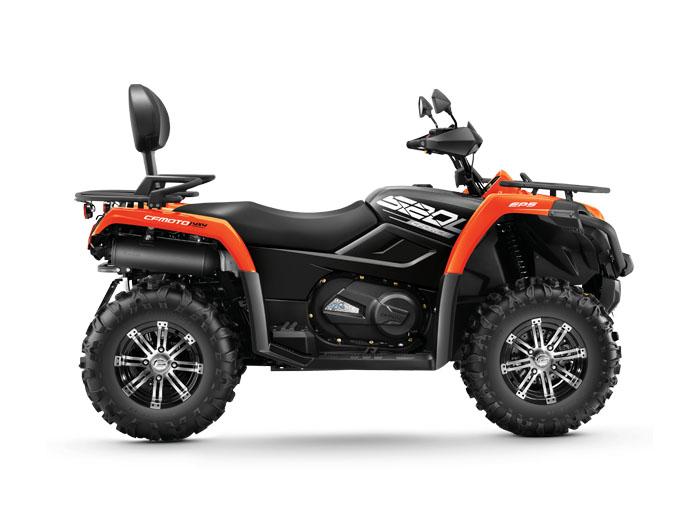

CFORCE 520

The CFORCE 520 is equipped with a most updated CFMOTO mid-displacement engine, a 495cc engine. This 34HP engine is an industry leading engine with liquid cooled, single -overhead-cam and fed by a 40mm Bosch Throttle Body. Featured with optional EPS, choice of single and double seat, a pure CFMOTO family design DNA.

* The model picture is only for your reference. The vehicle configuration may be subject to change due to local laws and regulations in different countries and regions.







specifications
The specs is only for your reference. The specifications may be subject to change due to local laws and regulations in different conutries and regions.

  • Engine
  • Engine TypeSingle-cylinder,4-valve,SOHC,EFI,Liquid cooled
  • Displacement 495cc
  • Bore x Stroke91.0mm×76.2mm
  • Compression Ratio10.3?1
  • Maximum Torque40N•m/6000 rpm
  • Maximum Power 25.5kW/ 6250rpm
  • Ignition ECU
  • TransmissionCVT
  • Fuel SupplyEFI


  • Dimensions and Weight
  • Length x Width x HeightS: 2100 x 1100 x 1150mm; L: 2300 x 1100 x 1350mm
  • WheelbaseS: 1260 mm ;L: 1460 mm
  • Seat Height540 mm
  • Minimum Ground Clearance250 mm
  • Curb Weight S: 345 kg ;L: 360 kg
  • Minimum Turning Diameter7m
  • Payload Capacity150 kg
  • Fuel Capacity15L
  • Maximum Speed100 km/h
  • ColorsBlack / Blue / Crystal Orange / Red

  • Chassis
  • Drive Switchable 2WD/4WD
  • BrakeHydraulic
  • Suspension Double A-arm
  • Shock Absorber Oil shock absorber
  • RimFront: 12 x 6.0AT Aluminum Alloy/Steel;
    Rear: 12 x 7.5AT Aluminum Alloy/Steel
  • TireFront: 24 x 8-12 45J 56kpa/AT25 x 8-12 40L 45kpa/ AT25 x 8-12 40J 45kpa;
    Rear: 24 x 10-12 52J 42kpa/AT25 x 10-12 50L 45kpa/ AT25 x 10-12 47J 45kpa
