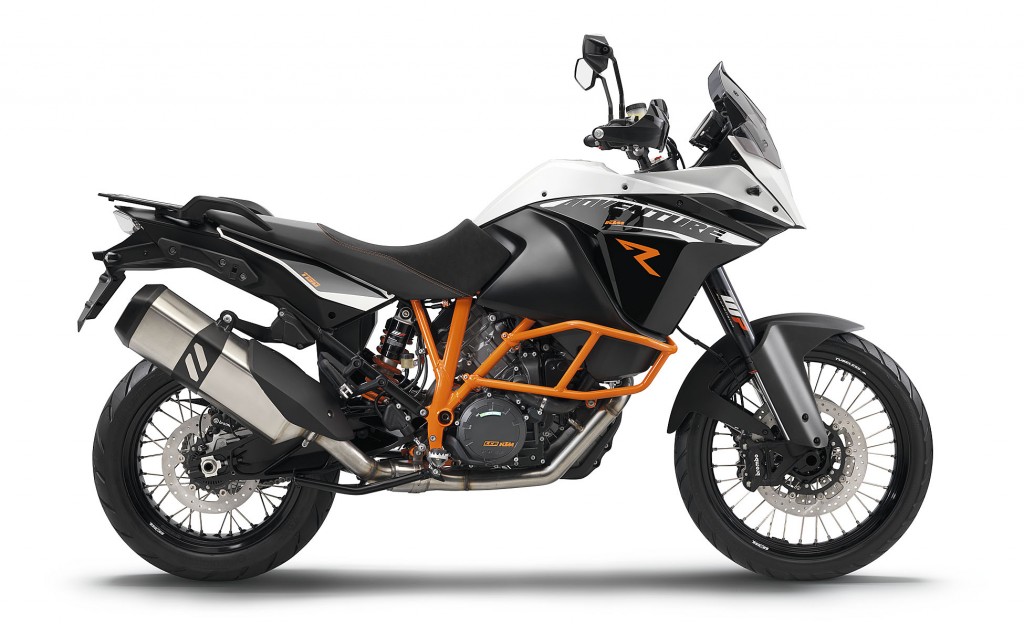

KTM 1190 ADVENTURE R 2015: MODEL INFO

The 1190 Adventure R has the heart and soul of the original KTM Adventure - puristic, raw, sportily challenging for rider and machine. This is the "non plus ultra" for sporty offroad traveling. Alpine gravel passes, desert pistes mixed with dunes, bad roads at the end of the world - This is the perfect bike. In 2014 it was the first bike, serially equipped with Bosch's MSC: Motorcycle Stability Control. MSC enhances the existing package consisting of lean-sensitive traction control and ABS featuring a combined braking function with a world first: the first ever lean-sensitive cornering ABS. Together with its sister model, the 1190 Adventure R has been turned into what is currently the world's safest motorcycle - yet still with undiluted riding pleasure. Hence, the Adventure R is aimed at all those who take the term "adventure" even more literally. The 1190 Adventure R is without doubt the twin-cylinder enduro with the greatest offroad ability. Full stop.
TECHNICAL DETAILS
ENGINE
Design 2-cylinder, 4-stroke, spark-ignition engine, 75° V arrangement, liquid-cooled
Displacement 1,195 cm³
Bore 105 mm
Stroke 69 mm
Starting aid Electric starter
Transmission 6-speed, claw shifted
Primary ratio 40:76
Final Drive
Clutch PASC™ anti-hopping clutch/ hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Tubular space frame made from chrome molybdenum steel, powder-coated
Fork WP Suspension Up Side Down
Shock absorber WP Suspension monoshock
Suspension travel Front 220 mm
Suspension travel Rear 220 mm
Brake system front 2 x Brembo radially mounted four-piston brake calipers
Brake system rear Brembo fixed mounted two-piston brake calipers
Brake discs - diameter front 320 mm
Brake discs - diameter rear 267 mm
Chain 5/8 x 5/16” X Ring
Steering head angle 64°
Wheelbase 1,580 mm
Ground clearance (unloaded) 250 mm
Seat height (unloaded) 890 mm
Total fuel tank capacity approx. 23 l Unleaded premium fuel (95 RON)
Weight without fuel approx. 217 kg (Maximum permissible total weight: 440 kg)
